Irrimonitor: weather stations, evapotranspiration and irrigation monitoring

Since 1999, DPS-Promatic has designed and manufactured professional weather stations, wireless irrigation monitoring systems, tensiometers and frost alarm devices in Italy. Depending on the model, our instruments provide local readings and data transmission to support agricultural decisions.

Discover the AWX-ET station Tensiometry and evapotranspiration

Stazioni meteorologiche DPS-Promatic: AWX-ET

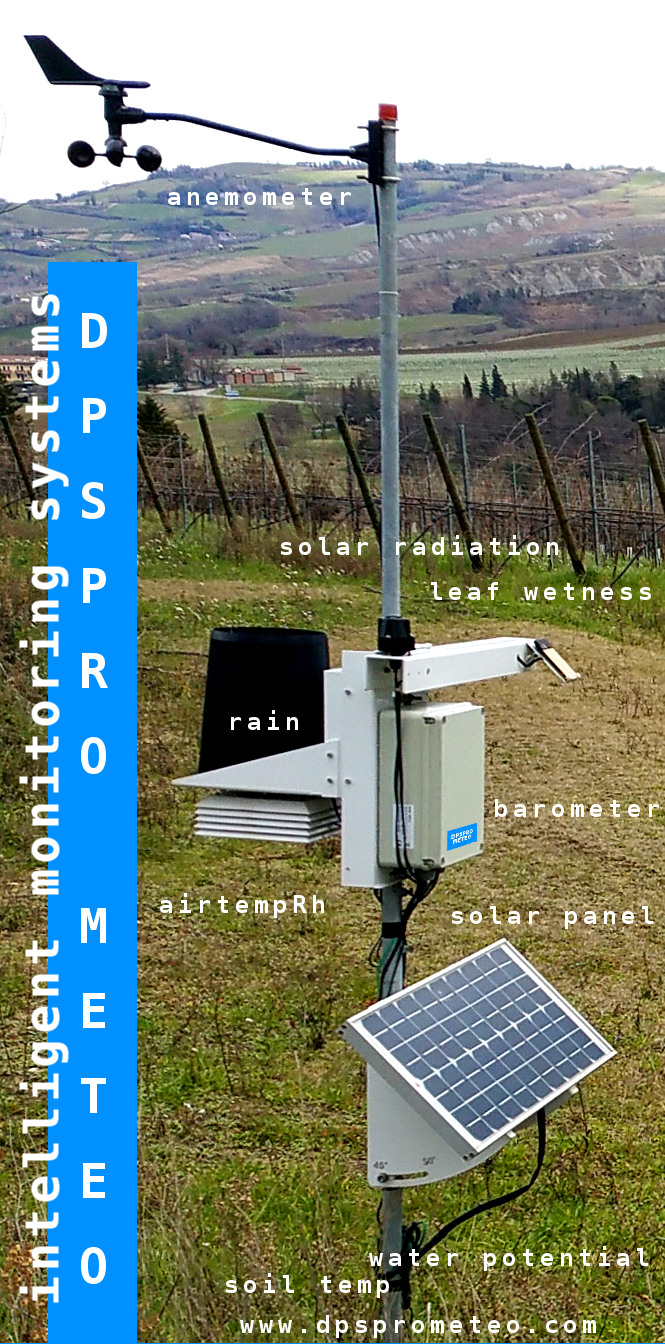

AWX-ET — Weather station for evapotranspiration calculations and frost alarms

AWX-ET is a professional weather station designed and manufactured in Italy by DPS-Promatic. It measures the parameters required to calculate reference evapotranspiration (ET₀), helping farmers estimate crop irrigation needs. A solar panel and battery allow autonomous operation.

Calculations can use the Hargreaves-Samani e FAO Penman-Monteith, using weather data measured on site.

Three operating modes

  • LTE 4G: sends data to the DPS-Promatic server for ET₀ calculations; a free service without guarantees or an extended service with data storage and more details is available.
  • Optional LoRa: local transmission up to approximately 2–3 km, depending on conditions, to a separate receiver that stores data for viewing on a computer.
  • Optional ALU: local ET₀ calculation and display of values for the last seven days on the station's LCD, even without connectivity.

An optional rain gauge can be added. The same unit can also be configured as a frost alarm, particularly useful in late winter and early spring; the wind speed sensor is not required in this configuration.

AWX-ET brochure (PDF) Request information

AGM3-C

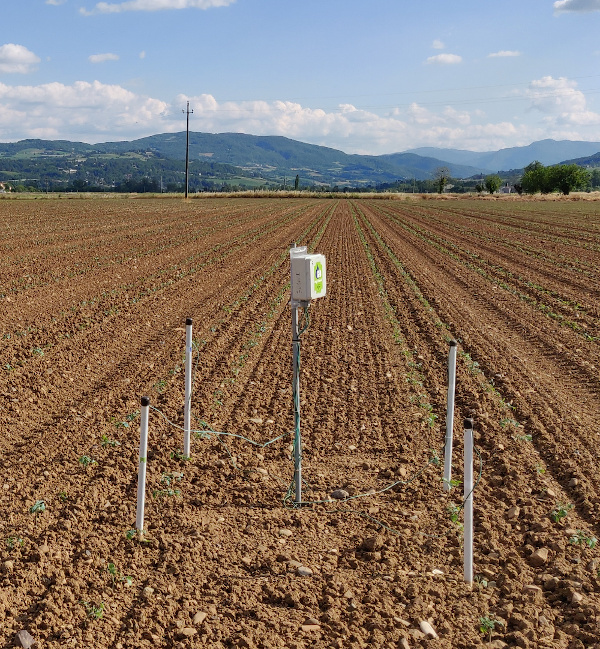

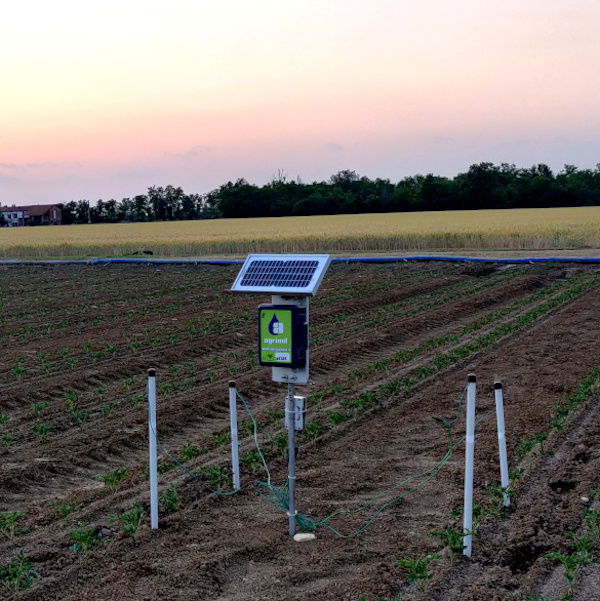

AGM3-C — Irrigation monitoring central unit

Central unit with GSM/GPRS communication, solar panel and backup battery. It receives data from up to four LoRa peripherals, several kilometres away in open terrain. Data can be sent to the DPS-Promatic server or a customer-selected server.

AGM3-P

AGM3-P — Peripheral unit

LoRa peripheral for soil moisture measurements using up to four Irrometer sensors. It sends data to the AGM3-C central unit and is powered by three AA batteries.

WS-04

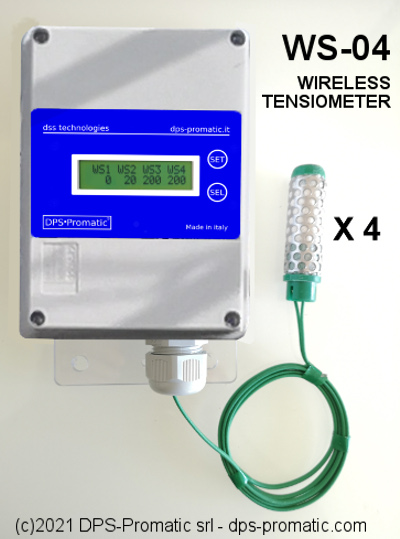

WS-04 — Wireless tensiometer

Measures soil moisture with up to four Watermark probes, displays readings locally and transmits data via NB-IoT. Battery powered.

FAL-01

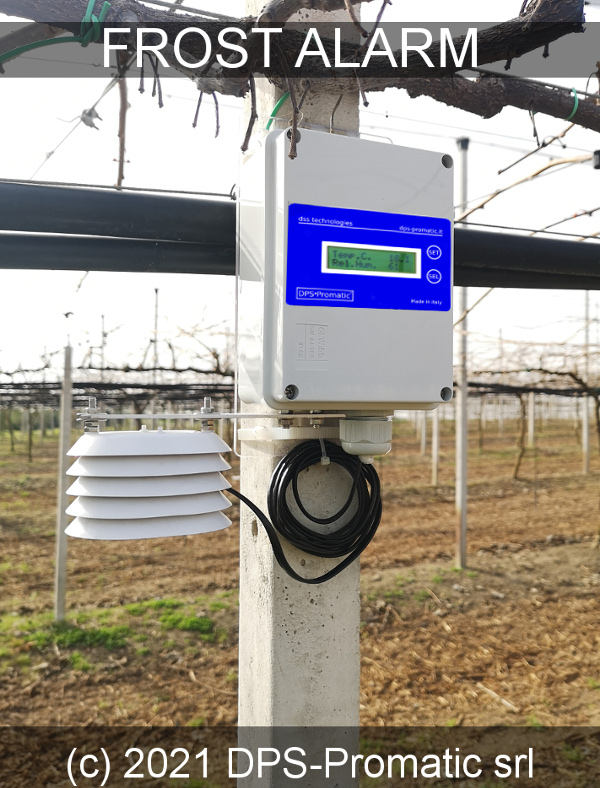

FAL-01 — Environmental monitor and frost alarm

Measures air temperature and relative humidity, calculates the dew point and can send alerts by email or app. Readings are available on the display and through NB-IoT connectivity.

FW4

FW4 — Temperature, humidity and irrigation monitor

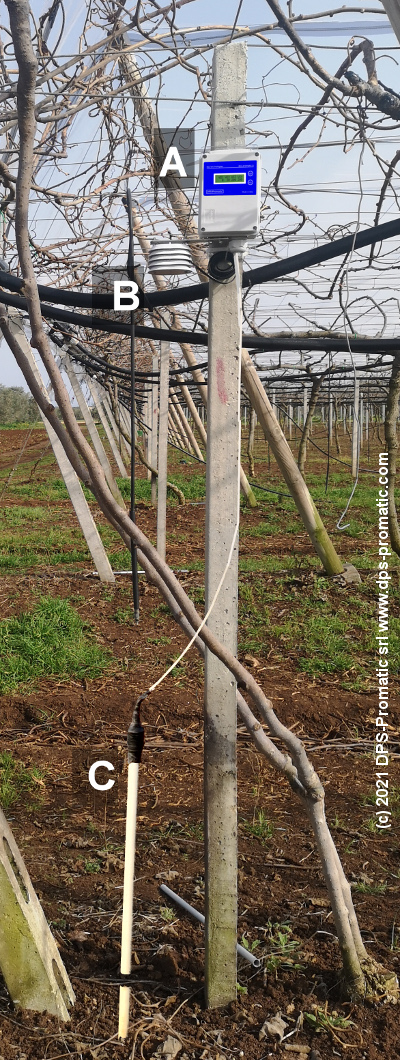

Combines frost-risk monitoring with soil moisture measurements using Watermark probes. Local display, NB-IoT transmission and alarm notifications.

TS-01

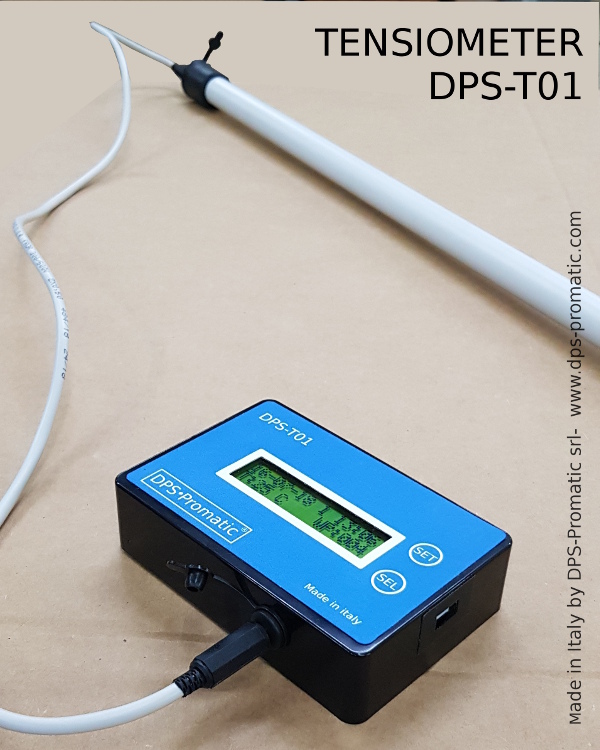

TS-01 — Portable tensiometer

Portable instrument for manual soil moisture measurements using Irrometer/Watermark probes, with on-screen readings and AAA battery power.

AWS-X

AWS-X — Professional weather station

Weather station measuring environmental parameters to support agricultural decision support systems (DSS): wind, rainfall, temperature, humidity, pressure, solar radiation and optional sensors. Solar panel and backup battery; GSM/GPRS data transmission.

Irrigation management methods: tensiometry and evapotranspiration

Tensiometry

Tensiometry helps assess soil water availability using sensors installed at different depths. Watermark granular sensors provide readings in centibars, helping determine when to start or stop irrigation.

Shallow and deep probes allow users to compare soil moisture trends and monitor water penetration during irrigation.

Evapotranspiration

Evapotranspiration combines evaporation from the soil with plant transpiration. Calculating ET₀ helps estimate irrigation requirements using weather data. Common methods include Hargreaves-Samani and FAO Penman-Monteith.

AWX-ET can calculate ET₀ from local measurements, even without a network connection when the ALU option is installed.

Ciclo dell'irrigazione Dati di monitoraggio dell'irrigazione Calcolo dell'evapotraspirazione

Information and contact

Contact DPS-Promatic for technical information, configurations and product availability.
